In progress...

.gitignore

@@ -0,0 +1 @@
+*.swp

LED_Multiplex_Display.ino

@@ -0,0 +1,237 @@
+//Copyright 2023 RuhNet
+//All rights reserved.
+//MIT Licensed.
+
+#define LOW 1
+#define HIGH 0
+
+//br = bottom right segment
+//top = top segment
+//bl = bottom left segment
+//b = bottom segment
+//mid = mid segment
+//tr = top right segment
+//tl = top left segment
+
+//PORTC   1  1  1  1  1  1  1  1
+//       br  . top bl b mid tr tl
+
+
+void writeDigit(byte displayCharacter, uint8_t position);
+void writeDisplay(char displayString[]);
+void loadDisplay(byte stringArr[]);
+
+byte segment_cursor = 1;  //which segment to light up
+uint8_t cursor = 0;       //position on display
+
+//PORTC is wired to each segment through a 200ohm resistor
+
+//PORTC   1  1  1  1  1  1  1  1
+//       br  . top bl b mid tr tl
+
+uint8_t seg_br = bit(7);
+uint8_t seg_dot = bit(6);
+uint8_t seg_top = bit(5);
+uint8_t seg_bl = bit(4);
+uint8_t seg_bot = bit(3);
+uint8_t seg_mid = bit(2);
+uint8_t seg_tr = bit(1);
+uint8_t seg_tl = bit(0);
+
+//characterset
+const byte c_space = 0x00;
+const byte c_0 = seg_br + seg_top + seg_bl + seg_bot + seg_tr + seg_tl;  //0b10111011
+const byte c_1 = seg_tr + seg_br;                                        //0b10000010
+const byte c_2 = seg_top + seg_bl + seg_bot + seg_mid + seg_tr;          //0b00111110
+const byte c_3 = seg_br + seg_top + seg_bot + seg_mid + seg_tr;
+const byte c_4 = seg_br + seg_mid + seg_tr + seg_tl;
+const byte c_5 = seg_br + seg_top + seg_bot + seg_mid + seg_tl;
+const byte c_6 = seg_br + seg_top + seg_bl + seg_bot + seg_mid + seg_tl;           //0b10111101
+const byte c_7 = seg_br + seg_top + seg_tr;                                        //0b10100010
+const byte c_8 = seg_br + seg_top + seg_bl + seg_bot + seg_mid + seg_tr + seg_tl;  //0b10111111;
+const byte c_9 = seg_br + seg_top + seg_bot + seg_mid + seg_tr + seg_tl;           //0b11101111
+const byte c_dot = seg_dot;                                                        //0b01000000
+const byte c_A = seg_br + seg_top + seg_bl + +seg_mid + seg_tr + seg_tl;           //0b10110111
+const byte c_B = seg_br + seg_bl + seg_bot + seg_mid + seg_tl;
+const byte c_C = seg_bl + seg_bot + seg_mid;
+const byte c_D = seg_br + seg_bl + seg_bot + seg_mid + seg_tr;
+const byte c_E = seg_top + seg_bl + seg_bot + seg_mid + seg_tl;
+const byte c_F = seg_top + seg_bl + seg_mid + seg_tl;  //0b00110101
+const byte c_G = seg_br + seg_top + seg_bl + seg_bot + seg_tl;
+const byte c_H = seg_br + seg_bl + seg_mid + seg_tr + seg_tl;
+const byte c_I = seg_bl;
+const byte c_J = seg_br + seg_bl + seg_bot + seg_tr;
+const byte c_K = seg_br + seg_bl + seg_mid + seg_tr + seg_tl + seg_dot;
+const byte c_L = seg_bl + seg_bot + seg_tl;
+const byte c_M = seg_br + seg_bl + seg_mid;
+const byte c_N = seg_br + seg_bl + seg_mid;
+const byte c_O = seg_br + seg_bl + seg_mid + seg_bot;
+const byte c_P = seg_top + seg_bl + seg_mid + seg_tr + seg_tl;
+const byte c_Q = seg_br + seg_top + seg_bl + seg_bot + seg_tr + seg_tl + seg_dot;
+const byte c_R = seg_br + seg_top + seg_bl + seg_mid + seg_tr + seg_tl;
+const byte c_S = seg_br + seg_top + seg_bot + seg_mid + seg_tl;
+const byte c_T = seg_br + seg_top + seg_tr;
+const byte c_U = seg_br + seg_bl + seg_bot;
+const byte c_V = seg_br + seg_bl + seg_bot;
+const byte c_W = seg_br + seg_bl + seg_bot + seg_tr + seg_tl;
+const byte c_X = seg_br + seg_bl + seg_mid + seg_tr + seg_tl + seg_dot;
+const byte c_Y = seg_br + seg_mid + seg_tr + seg_tl;
+const byte c_Z = seg_top + seg_bl + seg_bot + seg_mid + seg_tr;
+
+byte numberSet[11] = {
+  c_0,
+  c_1,
+  c_2,
+  c_3,
+  c_4,
+  c_5,
+  c_6,
+  c_7,
+  c_8,
+  c_9,
+  c_dot
+};
+
+//byte displayOutput[8] = { c_a, c_b, c_c, 0b11111111, c_2, c_3, c_4, c_5 };
+//byte displayOutput[8] = { c_H, c_E, c_L, c_L, c_O, c_dot, c_4, c_5 };
+//byte displayOutput[8] = { c_R, c_U, c_H, c_N, c_E, c_T, 0, 0 };
+
+byte displayOutput[] = { c_G, c_P, c_S, c_dot, c_L, c_O, c_C, c_K };
+
+
+void writeDigit(byte displayCharacter, uint8_t position) {
+  //segment_cursor = 1;
+  //PORTA = 0b10101010;
+  //PORTA = 0xff;
+  PORTA = (0xff & ~(1 << position));
+  for (uint8_t i = 0; i < 8; i++) {
+
+    PORTC = (displayCharacter & segment_cursor);
+    //PORTC = displayCharacter;
+    //delay(1);
+    //segment_cursor = segment_cursor << 1;  //shift bit to left
+
+    /*
+  if (displayCharacter & segment_cursor) {
+      PORTA = (0 << cursor);  //Enable the character to write this segment
+    } else {
+      PORTA = 0xff;
+    }
+    */
+  }
+}
+
+
+
+
+void writeDisplay(char displayString[8]) {
+  for (uint8_t i = 0; i < 8; i++) {
+    writeDigit(displayString[i], i);
+  }
+}
+
+
+
+
+void setup() {
+  OSCCAL = 0xad;
+  //pinMode(led, OUTPUT);
+  DDRA = 0xff;  //set all of port A as output
+  DDRC = 0xff;
+  PORTA = 0b10111111;
+  PORTC = 0b10111011;
+  PORTA = 0b11101111;
+  PORTC = 0b10000111;
+  PORTA = 0x00;
+  PORTC = 0b01000000;
+
+  /*
+    TCCR2 PRESCALER:
+    CS22 CS21 CS20
+    0    0    1    2
+    0    1    0    8
+    0    1    1    32
+    1    0    0    64
+    1    0    1    128
+    1    1    0    256
+    1    1    1    1024
+  */
+
+  noInterrupts();  // disable all interrupts
+  TCCR2 = 0;
+  //TCNT2 = 150;                        // preload timer
+  //TCCR1B |= (1 << CS22) | (1 << CS21) | (1 << CS20); // 1024 prescaler
+  TCCR2 |= (1 << CS21);   // prescaler 8
+  TIMSK |= (1 << TOIE2);  // enable timer overflow interrupt ISR
+  interrupts();
+
+
+
+  //PORTA = 0b11100011;
+  PORTA = 0b00100111;
+  //PORTA = 0x00;
+}
+
+ISR(TIMER2_OVF_vect) {  //WRITE DISPLAY!
+  //WRITE DISPLAY
+  TCNT2 = 192;  //set timer value to set refresh rate -- lower is slower
+  PORTA = 0xff;
+
+  if (displayOutput[cursor] & segment_cursor) PORTA &= ~(1 << cursor);
+
+  //writeDigit(displayOutput[cursor], cursor);
+  PORTC = (displayOutput[cursor] & segment_cursor);
+  if (segment_cursor < 0b10000000) {
+    segment_cursor = segment_cursor << 1;
+  } else {
+    segment_cursor = 1;
+    if (cursor < 7) {
+      cursor++;
+    } else {
+      cursor = 0;
+    }
+  }
+}
+
+
+
+void loadDisplay(byte stringArr[]) {
+  for (uint8_t i = 0; i < 8; i++) {
+    displayOutput[i] = stringArr[i];
+  }
+}
+
+void loop() {
+  byte dp1[8] = { c_G, c_P, c_S, c_dot, c_L, c_O, c_C, c_K }; //GPS.LOCK
+  loadDisplay(dp1);
+  delay(1000);

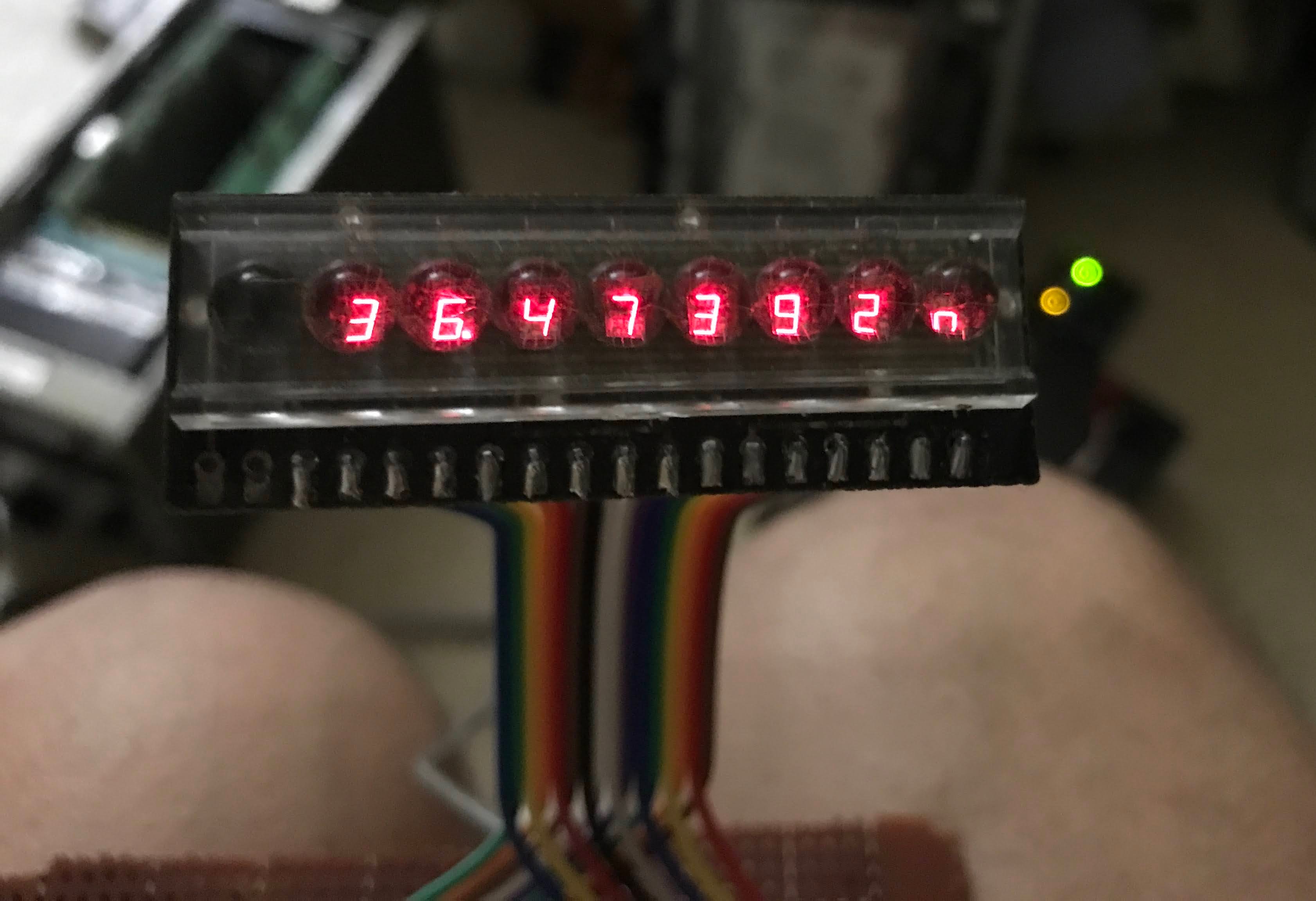

+  byte dp2[8] = { c_3, (c_6 | (1 << 6)), c_4, c_7, c_3, c_9, c_2, c_N }; //36.47392N  --- the bitshift turns the dot on along with the 6.
+  loadDisplay(dp2);
+  delay(1000);
+  byte dp3[8] = { c_C, c_L, c_O, c_C, c_K, 0, 0, 0 }; //CLOCK
+  loadDisplay(dp3);
+  delay(1000);
+  byte dp4[8] = { c_1, c_2, c_dot, c_5, c_4 , c_dot, c_3, c_7 }; //12.54.37
+  loadDisplay(dp4);
+  delay(1000);
+  displayOutput[7] = c_8;
+  delay(1000);
+  displayOutput[7] = c_9;
+  loadDisplay(displayOutput);
+  delay(1000);
+  displayOutput[6] = c_4;
+  displayOutput[7] = c_0;
+  delay(1000);
+  displayOutput[7] = c_1;
+  delay(1000);
+  displayOutput[7] = c_2;
+  delay(1000);
+    displayOutput[7] = c_3;
+  delay(1000);
+    displayOutput[7] = c_4;
+  delay(1000);
+    displayOutput[7] = c_5;
+  delay(1000);
+    displayOutput[7] = c_6;
+  delay(1000);
+}
